Product Details:
|
| Type: | All Cars/Vehicle, Car GPS Antenna | Center Frequency: | 1575.42MHz |
|---|---|---|---|
| V.S.W.R: | ≤1.5 | Band Width: | ±5 MHz |
| Polarization: | Right-hand Polarization | Impedance: | 50Ω |
| LNA Gain(without Cable): | 28dB | DC Voltage: | 3.0±0.3VDC, 5.0±0.5VDC |
| Size: | 46mm X 46mm X 13mm/1.81'' X 1.81'' X 0.51'' (Approx.) | Connector: | SMA Or Customized |
| High Light: | Fakra Car GPS Antenna,1575.42MHz Car GPS Antenna,Fakra Magnetic Mount GPS Antenna |
||

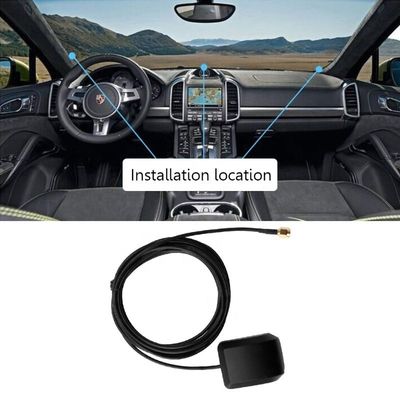

Magnetic Mount GPS Antenna Fakra Active Car GPS Antenna with RG174 for GPS GNSS GLON
Product Description
Type: Car GPS Antenna
Antenna Specification:Center Frequency: 1575.42MHz
V.S.W.R: ≤1.5
Band Width: ±5 MHz
Polarization: Right-hand Polarization
Impedance: 50Ω
LNA Specification:
LNA Gain(without Cable): ≥28dB
Noise Figure: ≤1.5dB
Interference Suppression: 20dB(f0±140MHz)
V.S.W.R : <2.0
DC Voltage: 3.0±0.3VDC, 5.0±0.5VDC
DC current: ≤20mA
Mechanical Specification:
Material: ABS
Connector: SMA
Mounting: 3M Sticker
Size: 46mm x 46mm x 13mm/1.81'' x 1.81'' x 0.51'' (Approx.)
Cable Length: 3m/118.11'' (Approx.)
Ultra-high sensitive GPS receiving, faster GPS signals capture.
Lower power consumption, stronger anti-jamming performance and wider working voltage range.
Adapt to wet and high temperature, harsh working environment.
With magnetic base, easy to install.
