Product Details:
|
| Type: | Combination Antenna | Frequency Range (MHz): | 1575.42MHz/698-2700MHz/2400-2500MHz |
|---|---|---|---|
| Gain (dBi): | 28/3/3 | Polarization Type: | Veltical |
| VSWR: | ≤1.5 | Input Impedance (): | 50 |
| Maximum Power (W): | 50 | Lightning Protection: | DC Grounding |
| Connector Type: | SMA-J Or Customizable | Cable Type: | RG174 |
| Cable Length (Meter): | 2.5±0.03M | ||
| High Light: | GPS WiFi 4G LTE Combo Antenna,SMA J Connector Combo Antenna,Combined Antenna |
||

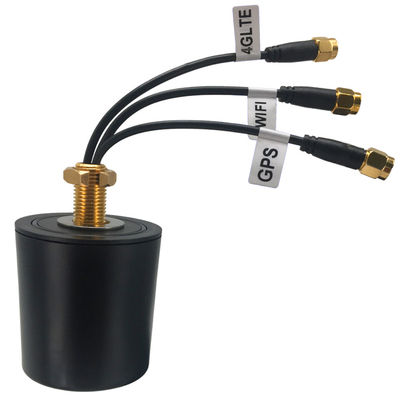

Omni Directional Waterproof Screw Mount 3-in-1 Combined Antenna Outdoor GPS Wifi 4G LTE Combo Antenna
Product Description
|
Omni Directional Waterproof Screw Mount 3-in-1 Combined Antenna Outdoor GPS Wifi 4G LTE Combo Antenna |
|
|
Frequency Range (MHz) |
1575.42MHz/698-2700MHz/2400-2500MHz |
|
Gain (dBi) |
28/5/5 |
|
VSWR |
≤1.5 |
|
Input Impedance (Ω) |
50 |
|
Maximum Power (W) |
50 |
|
Power |
DC5V |
|
Power consumption |
≤16mA |
|
Lightning Protection |
DC grounding |
|
Connector type |
SMA-J or Customizable |
|
Cable Type |
RG174 or RG316 |
|
Cable length (Meter) |
2.5±0.03M |
|
Radome Material |
ABS |
|
Aerial Color |
Black |
|
Mount way |
Screw |
|
Dimensions (mm) |
56*56*65mm |
|
Weight (g) |
200 |
|
Waterproof |
IP66 |
|
Noise Factor (dBi) |
≤1.5 |
|
Operating Temperature (℃) |
-40--60° |
|
Relative Humidity |
Up to 95% |
|
ROHS Compliant |
yes |
GPS Antenna(1575.42mhz),GPS+BD(1575+1561), GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Ban
2.4g GSM Wifi LTE 2g 3g 4g 433mhz 868mhz External Rubber Duck Antenna 2dBi 3dBi 5dBi 7dBdi 9dBi Wifi Antenna
ABS material, high temperature resistance
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
