Product Details:
|
| Frequency Range (MHz): | 1710-2170 | Gain(dBi): | 17±1 |
|---|---|---|---|
| HorizontalBeam Width(°): | 65±6 | Vertical Beam Width(°): | 7±1 |
| Electrical Downtilt(°): | 0～8 | Horizontaladjustable Degree (°): | ＋30～－30 |
| VSWR: | ≤1.5 | Isolation Between Ports(dB): | ≥28 |
| Upper Sidelobe Suppression(dB): | ≥16 | Front To Back Ratio(dB): | ≥25 |
| Polarization: | ±45° | Input Maximum CW Power(W): | 250 |
| PIMD 3th: | ≤-107dBm(@20W) | Impedance(Ω): | 50 |
| Input Connector: | 7/16DIN Female×4 | Dimensions Of Antenna(mm): | 1800*800*400 |
| Weight Of Antenna(kg): | 40 | Temperature(℃): | -40~+60 |
| Max Wind Speed (m)/s: | 50 M/s | Radome Material: | Plastic Or FRP |
| High Light: | Electrically Tunable Dual Polarized Antenna,2170MHz Dual Polarized Antenna,17dBi Dual Polarization Antenna |
||

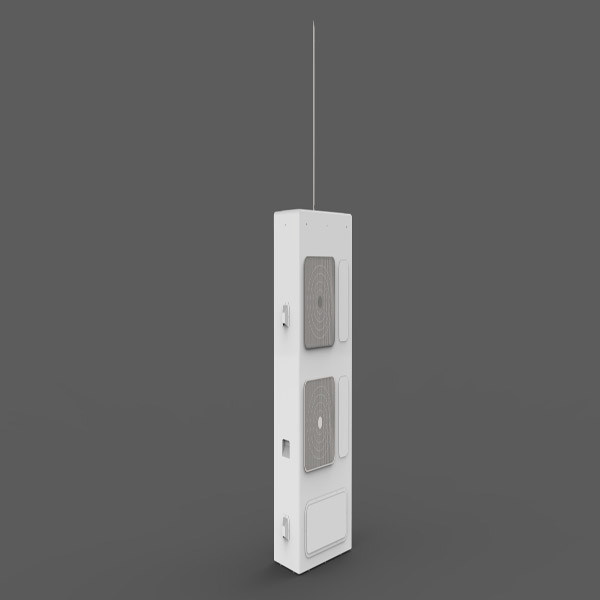

Dual Polarization Electrically Tunable Antenna 17 H65E7 1710-2170
Product Description
Frequency Range (MHz):1710-2170
Gain(dBi):17±1
HorizontalBeam Width(°):65±6
Vertical Beam Width(°):7±1
Electrical Downtilt(°):0～8
Horizontaladjustable degree (°):＋30～－30
VSWR:≤1.5:1
Isolation between Ports(dB):≥28
Upper Sidelobe Suppression(dB):≥16
Front to Back Ratio(dB):≥25
Polarization:±45°
Input Maximum CW Power(W):250
PIMD 3th:≤-107dBm(@20W)
Impedance(Ω):50
Input Connector:7/16DIN Female×4
Dimensions of Antenna(mm):1800*800*400
Weight of Antenna(kg):40
Temperature(℃):-40~+60
Max Wind Speed (m)/s:50 m/s
Radome Material:Plastic or FRP
Uses: Household, Commercial, Vehicle, Hotel, Shopping Mall, Clubhouse, Station, High-speed Rail, Hospital, School, Public Place, Wifi Coverage, Etc.
Applications:Security monitoring, wireless router, mobile phone antenna, IoT smart, smart home, car mobile antenna, network HD camera, advertising all-in-one, shared vending machine, TV antenna, radio antenna, 5G image transmission, drone antenna
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
