Product Details:
|
| Name: | 4g Ts9 Antenna | Frequency Range-MHz: | 698~960/1710~2700 |
|---|---|---|---|
| Gain-dBi: | 7 | V.S.W.R: | 2.0 Maximum |
| Dimensions-mm: | 360*30 | Maximum Power-W: | 50 |
| Connector: | CRC9 TS9 Male Or Customized For Screw Mounting 4g Antenna | Quality Warranty: | 2 Years For 4g Ts9 Antenna |
| Type: | Multiband Antenna | ||
| High Light: | SMA Male Connector Magnetic Base Antenna,4G Magnetic Base Antenna,3G SMA Male Connector Antenna |
||

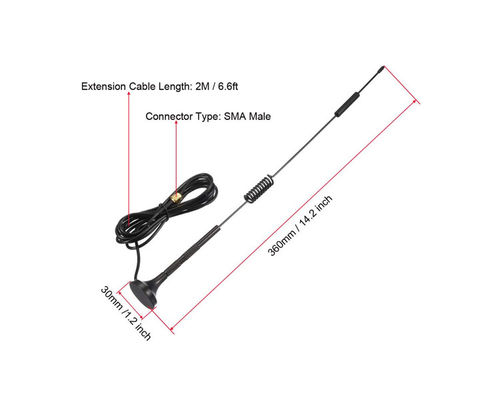

360mm 3G 4G 700-2700MHz SMA Male Connector LTE Magnetic Base Antenna
Product Description
|
Category |
4g Magnetic antenna |
|
Model |
WL-4GE360 |
|
Frequency Range-MHz |
698~2700 |
|
Gain-dBi |
7 |
|
V.S.W.R |
≤2 |
|
Nominal Impedance-Ω |
50 |
|
Polarization |
Vertical |
|
Maximum Power-W |
50 |
|
Dimensions-mm |
360*30 |
|
Connector |
SMA or customized |
|
Extension Cable Length |
2M / 6.6ft |
|
Magnetic Base Size |
95 x 30mm / 3.7 x 1.2 inch (H*D) |
|
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
Environmentally Friendly |
ROHS Compliant |
Main
Higher the Antenna gain, the signal amplification better.
Common interface have N, SMA, FME, IPEX, F, IEC, etc.
2.4G Bluetooth /WIFI network card (2400-2500mhz) , GPS Antenna(1575.42mhz),GPS+BD(1575+1561), GPS+GSM+4G Antenan ,
4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Band
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
