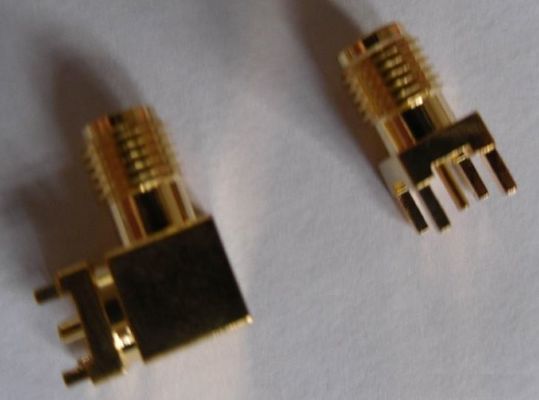

SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator

SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator
SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator

Large Image :  SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator

Product Details:
Place of Origin: China
Brand Name: Lineyi
Certification: ISO9001
Model Number: SMA Quad 90 ° 180 ° Seat RF Connector
Payment & Shipping Terms:
Minimum Order Quantity: 2,000pcs
Price: USD,Negotiation
Packaging Details: PE+Carton
Delivery Time: 7~15 days
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 300,000pcs/month

SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator

Description
Name: SMA Quad 90 ° 180 ° Seat RF Connector Impedance: 50Ω,75Ω
Standing Wave Ratio: ≤1.5 Frequency: 0-6GHZ
Connector Plating: Gold Plated Operating Temperature: -65℃~165℃
Shell: Brass, Gold Plated Jacket: Bronze, Gold Plated
Insulator: Polytetrafluoroethylene
High Light:

180 Degree Seat RF Connector

,

90 Degree Seat SMA RF Connector

,

SMA Quad Connector

SMA Quad 90 ° 180 ° Seat RF Connector





SMA series products are a very wide range of applications of small coaxial threaded connection connectors,It has the characteristics of high frequency, excellent performance and long life, suitable for microwave equipment and digital communication ,Radio frequency connectors for the system



MCX series RF connector is a small push-in self-locking connector, it has the characteristics of small size, light weight, compact structure, can be used for the volume, weight and installation of small electronic equipment or network system requirements



We are specialized in producing small RF connectors.The company has a standardized production plant.Professional do SMA,SMB,MCX,MMCX series small plug, in the same industry and antenna industry has a good reputation.The company wholeheartedly for customers to create a first-class production joint assembly line.In line with all for the customer's basic principle.We always adhere to the quality as the first guide, timely delivery, reasonable price model, and constantly improve their processing capacity to meet customer needs.We would like to thank our friends who have always supported us and believed in us.



SMA series product is one kind of application very extensive small thread joins coaxial connector, it has the frequency high, the performance is superior, the life long characteristic, is suitable for the microwave equipment and the digital communication system application RFconnector.



Product Details

Product Name
SMA Quad 90 ° 180 ° Seat RF Connector
Frequency Range
0-6GHz
VSWR
≤1.5
Input Impedance (Ω)
50,75
Operating temperature
-65℃~165℃
Connector
SMA Female / RP SMA Female or Customizable
Connector Plating
Gold Plated













SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator 0





SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator 1

SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator 2

SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator 3

SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator 4

SMA Quad 90 180 Degree Seat RF Connector With PTFE Insulator 5

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
