|Material:||ABS||Number Of Contacts:||6 Pin|
|Contact Resistance:||≤ 100MΩ||Insulation Resistance:||1000MΩ/500VDC|
|Operating Temperature:||-25℃~+85℃||Operating Humidity:||10%~95% RH|
10 Percent RH Smart Card Connectors,
6P Smart Card Connectors,
ABS ic card connector

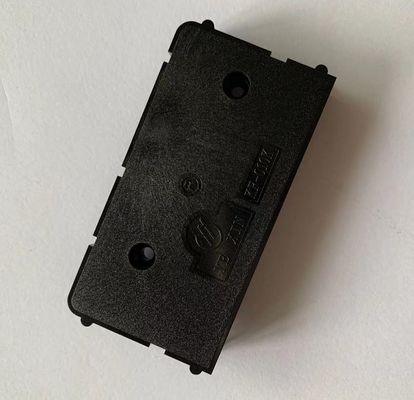

KF-010K SMART CARD CONNECTOR
SIM card connectors can be used in POS terminals, GPS units, Mobile phones, etc. Reliable contact performance, High durability
1. General Characteristics
Hinged cover type, w/o detective switch
Dimension: 30.34x17x2.4mm (LxWxH)
Weight: 1.9g (approx.)
Durability: 10000 cycles
2. Mechanical Characteristics
Insulation material: Thermoplastic, UL 94V-0
3. Electrical Characteristics
Number of contacts: 6 pin
Contact resistance: ≤ 100MΩ
Insulation resistance: 1000MΩ/500VDC
IR reflow: 260 degrees centigrade, 8-10 sec max.
Hand soldering: 330 degrees centigrade, 3 sec max.
5. Environment characteristics
Operating temperature: -25~+85 degrees centigrade
Operating humidity: 10%~95% RH
Storage temperature: -25~+85 degrees centigrade
Storage humidity: 10%~95% RH
|Number of contacts||6 pin|
|Contact resistance||≤ 100MΩ|
|Operating humidity||10%~95% RH|
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
