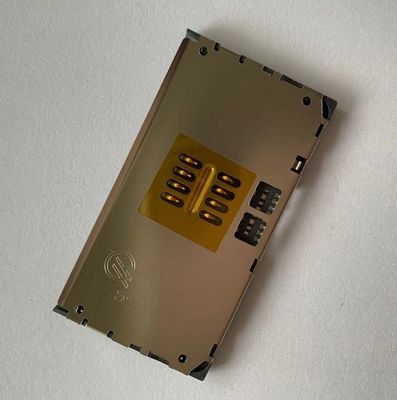

KF011 IC Card Connector

KF011 IC Card Connector
KF011 IC Card Connector KF011 IC Card Connector KF011 IC Card Connector

Large Image :  KF011 IC Card Connector

Product Details:
Place of Origin: China
Brand Name: YEXIN
Certification: ISO
Model Number: KF-11E-A
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: USD0.50-USD1.00/pc EXW
Packaging Details: Box, Outer packing: Carton
Delivery Time: 7~14 days
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 4,500Kpcs/month

KF011 IC Card Connector

Material Insulator: LCP FIT30 Number Of Contacts: 8 Pin
Contact Resistance: ≤ 100MΩ Insulation Resistance: 1000MΩ/500VDC
Operating Temperature: -25℃~+85℃ Operating Humidity: 10%~95% RH
Material Cover: SUS304
High Light:

KF011 IC Card Connector


FIT30 IC Card Connector


SUS304 Smart Card Socket

KF011 Series Smart Card Connector IC card connector for Smart Home Appliance


Famous YEXIN Brand KF011 series smart IC card connector for domestic and overseas market. We have different model number:  KF011/ KF011C/ KF011E-A,/KF011MF  for customers to opt according to their devices requirements.


Model: KF011: SMT type, Blade switch: normally open, Size: 56x31.2x3.65mm

Model: KF011-MF: SMT type, Sealed swtich: normally open, Size: 56x31.2x3.65mm

Model: KF011C: SMT type, Sealed switch: normally open, Size: 56x31.2x3.65mm

Model: KF011E-A: SMT type, sealed switch: normally open, Siza: 56x31.2x3.65mm, with high temperature tape


The KF011 sereies is an interface device For ISO based IC CARD or SMART CARD.

It is designed for high performance and flexibility to give prospective customers a quick applications of the individual devices In their product series. Several solutions to opt.



★ ISO7816 Standard IC CARD or SMART Card.(note)

★ Compact Physical Size for Multi-Purpose Application

★ Module Type IC Contact Compatible with CP8.(note)

★ High Reliability Low-Friction Contact Extension operation Life of Contact.

★ Friction Contact Technology.

★ EMV&NDS compliant. Applications:



★ Access Control Terminals.

★ Terminal Identification module.

★ Telecommunication

★ Vending Machines.

★ Other identification recognition.


Item Standard Description
Dimensions   56x31.2x3.65mm
Weight   Approx. 11.5g
Card size ISO7816 part2 85.6x54*0.76mm
Contact principle   SMT type
Operating position   Shaft up/Down/Horizontal
Mounting System   Solder
Durability   500,000/cycles


SMT Push Pull Smart Card Connector 8Pin

Plating: contact area: gld over nickle
terminals: gold over nickle

Mechanical data
Number of contacts: 8
Mechanical life: 500000 cycles min
Insert force: ≤5N
Extraction force: ≥1N
Contact force: 0.2N to 0.6N

Electrical data
Insulation resistance:> 1000MΩ /500Vdc
Contact resistance≤0.2Ω
Switch: normally open

Environmental data
Operating temperature: -45℃ to +85℃

Salt mist experiment: in the 5% NACL solution, under 35℃ for 48 hours, no obvious eroding phenomenon on the surface of metal


Contact force: 0.2-0.6N

Insert force: 10N Max.

Extrace force: 10N Max.

Kapton: 250g/360mmMin




Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
