Product Details:
|
| Type: | Combination Antenna | Product Name: | Combo GPS GSM GLONASS Antenna |
|---|---|---|---|
| Size: | D80*15mm | Mounting: | Adhesive/Magnet |
| GPS Frequency: | 1575.42 MHz±3 MHz | GLONASS Frequency: | 1602-1610 MHz |
| Compass Frequency: | 1561 MHz | V.S.W.R: | 1.5:1 |
| Band Width: | ±5 MHz | Impedance: | 50 Ohm |
| Polarization Type: | R.H.C.P | ||
| High Light: | GSM GPS GLONASS Antenna,Adhesive GPS GLONASS Antenna,GSM GPS GLONASS Combo Antenna |
||

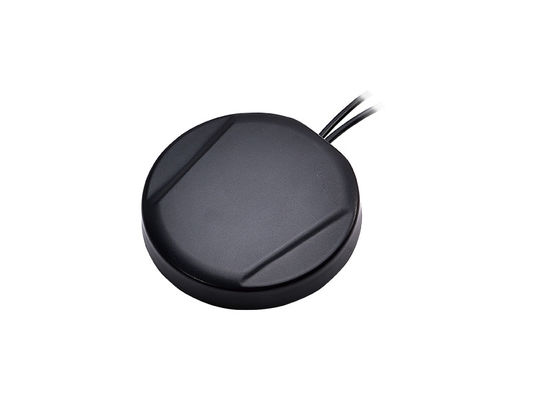

D80*15mm Round Adhesive Type Combo GPS GSM GLONASS Antenna
Specification
|
Dielectric Antenna |
|
|
GPS Frequency |
1575.42 MHz±3 MHz |
|
GLONASS Frequency |
1602-1610 MHz |
|
Compass Frequency |
1561 MHz |
|
V.S.W.R |
1.5:1 |
|
Band Width |
±5 MHz |
|
Impedance |
50 ohm |
|
Polarization Type |
R.H.C.P |
|
LNA/Filter |
|
|
LNA Gain(w/o cable) |
28±2dB Typical |
|
Noise Figure |
1.5 dB |
|
DC Voltage |
2.2~5 V |
|
DC Current |
5~15 mA |
|
GSM Antenna |
|
|
Frequency |
824-894 MHz/1710-1990 MHz |
|
880-960 MHz/1710-1990 MHz |
|
|
1920-2170 MHz |
|
|
V.S.W.R |
2.0:1 |
|
Band Width |
±5 MHz |
|
Impedance |
50 ohm |
|
Gain(w/o cable) |
2 dBi |
|
WIFI Antenna |
|
|
Frequency |
2400-2500 MHz |
|
V.S.W.R |
2.0:1 |
|
Band Width |
100 MHz |
|
Impedance |
50 ohm |
|
Gain(w/o cable) |
3 dBi |
|
Mechanical |
|
|
Mounting |
Magnetic/Adhesive/Screw |
|
Housing |
Black |
|
Cable |
RG174 3m or others |
|
Connectors |
SMA/MCX/SMB/BNC or others |
|
Environmental |
|
|
Working Temp |
-40℃~+85℃ |
|
Relative Humidity |
55%~75%RH |
|
Waterproof |
IP67 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
antenna manufacturer,outdoor indoor antennas,magnetic antennas,rubber antenna,supply 5g antenna,lte 4g antenna,
2.4G 5.8G dual band antenna,wifi indoor antenna,433Mhz 868Mhz 915Mhz antenna,cable length and connectors can be customized according to requirements
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
