Product Details:
|
| Material: | PC | Number Of Contacts: | 8pin |
|---|---|---|---|
| Contact Resistance: | ≤ 100MΩ | Insulation Resistance: | 1000MΩ/500VDC |
| Operating Temperature: | -25℃~+85℃ | Operating Humidity: | 10%~95% RH |
| Type: | Drop Technology | Use: | IC Card Reader, IC Lock, Control Terminal, Terminal Payment System |
| High Light: | ISO7816 8p Smart Card Connectors,8p Smart Card Connectors,8p smartcard socket |
||

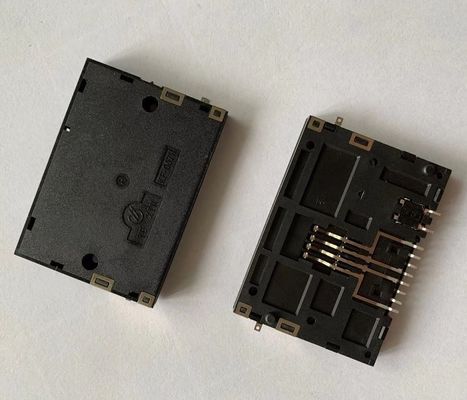

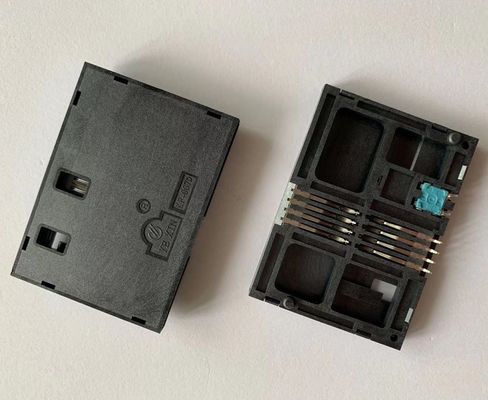

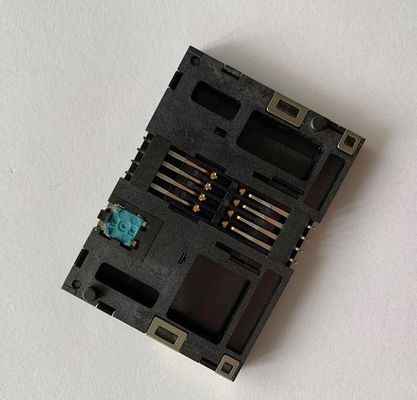

KF-007 series SMART CARD CONNECTOR 8 pin ISO7816 CARD
Product Description
The KF007D is an interface device For ISO based IC CARD or SMART CARD.
It is designed for high performance and flexibility to give prospective customers a quick applications of the individual devices In their product series. Best solution for customers.
Customers can select the most suitable model according to their requirements and application.
Technical Characteristics
Mechanical Characteristics
Number of contacts: 8
Mechanical life: 200000 cycles min
Insert force: 1N-5N
Extraction force: 3N-10N
Contact force: 0.2N to 0.6N
Shock experiment: after socket shocking, there is no any hurt and also no change between card and switch.
Electrical Characteristics
Insulation resistance: 1000MΩ min
Contact resistance: 0.1Ωmax when the switch is closed, resistant between two pins is 0.1Ω max
Switch: normally open
Environmental Characteristics
Operating temperature: -40℃ to +85℃
Soldering: manual
Humidity experiment: 40℃,90-96 keep 48 hours, no obvious eroding phenomenon.
Salt mist experiment: in the 5% NACL solution, under 35℃ for 48 hours, no obvious eroding phenomenon on the surface of metal.
Product Details
| Material | PC |
| Number of contacts | 8pin |
| Contact resistance | ≤ 100MΩ |
| Insulation resistance | 1000MΩ/500VDC |
| Operating temperature | -25℃~+85℃ |
| Operating humidity | 10%~95% RH |
| 10%~95% RH | Drop Technology |
| Use | IC card reader, IC lock, control terminal, terminal payment system |
KF-007D SMART CARD CONNECTOR, 8 PIN, FOR ISO7816 STANDARD CARD, BLACK COLOR. USED FOR SMART HOME DEVICES.
Our KF007 series has 7 models as follows:
Model: KF007 DIP type/Landing type, Blade switch: normally open, Size: 55.5x40x5.8mm
Model: KF007C-DIP DIP type/Landing type, Blade switch: normally open, Size: 55.5x40x5.8mm
Model: KF007D: Landing type, Blade switch: normally open, Size: 55.5x40x5.8mm
Model KF007E, KF007H, KF007I, KF007M for you to choose according to your requirement.
Differences for these models: Appearance and some design are different. For details, pls inquire us freely!
Features:
★ ISO7816 Standard IC CARD or SMART Card.(note)
★ Compact Physical Size for Multi-Purpose Application
★ Module Type IC Contact Compatible with CP8.(note)
★ High Reliability Low-Friction Contact Extension operation Life of Contact.
★ Friction Contact Technology.
★ EMV&NDS compliant. Applications:
Applications:
★ Access Control Terminals.
★ Terminal Identification module.
★ Telecommunication
★ Vending Machines.
★ Other identification recognition.
| Item | Standard | Description |
| Dimensions | 55.5LX40.0X5.80 H mm | |
| Weight | Approx. 11.5g | |
| Card size | ISO7816 part2 | 85.6x54*0.76mm |
| Contact principle | Drop technology | |
| Operating position | Shaft up/Down/Horizontal | |
| Mounting System | Thru Hole With snap-in-lock | |
| Durability | 300,000/cycles Min. |
FAQ :
Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.
Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
