4G/3G Pocket Cat4/6 MIFI router ,2.4/5.8GHZ dual band wifi frequency,300mbps high speed rate,TR069 remote control
| Model |
RSRT-4GC6-P |
| Dimensions |
99.4x66x18.3mm |
| Weight |
0.2kg |
| Form |
MiFi/Pocket Router |
Communication
System (WAN) |
Chipset |
Qualcomm MDM9x40 |
Frequency
Bands |
LTE |
Band 1, 3, 7, 8, 20, 38, Customized as demand |
| LTE CA |
B38+B38 |
| UMTS |
Band 1, 8 |
| GSM |
900MHz, 1800MHz |
| Bandwidth |
LTE Band |
1.4/3/5/10/15/20/40 MHz |
| Modulation |
Downlink |
QPSK/16-QAM/64-QAM/256-QAM |
| Uplink |
QPSK/16-QAM/64-QAM |
| Antenna |
Primary |
Internal, 2R1T |
| Diversity |
Internal, 2R, UMTS Optional |
RF Power
Level |
LTE |
Power Class 3 (23 +/-2dBm) |
| UMTS |
Power Class 3 (24 +1.7/-3.7dBm) |
| EDGE |
Power Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm) |
| GPRS |
GSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm) |
| Data Rate |
4G |
3GPP R13, Cat. 12, Downlink/Uplink up to 400Mbps/50Mbps |
| 3G |
3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps |
| 2G |
EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps |
| WLAN |
Wi-Fi |
Chipset |
Qualcomm QCA6174 |
| Frequency |
2.4GHz, 5.8GHz |
| Protocol |
802.11b/g/n/ac |
| Channel |
2.4GHz: 1~13, 5.8GHz: 36~165 |
| Antenna |
Internal, 2 x 2 |
| Data Rate |
802.11b |
Up to 11 Mbps |
| 802.11g |
Up to 54 Mbps |
| 802.11n |
Up to 300 Mbps |
| 802.11ac |
Up to 867 Mbps |
| Feature |
Interface |
USB |
USB2.0 |
| USIM |
Single, 3FF |
| MicroSD |
Up to 64GB |
| LED |
Power |
Power/Battery Status Indicator (2 Colors) |
| Network |
4G/3G/2G Network Status Indicator (3 Colors) |
| Signal Bar |
4 bars for Network Signal Strength Indicator |
| Wi-Fi |
Wi-Fi Status Indicator |
| Message |
New SMS Indicator |
| Display (Optional) |
OLED |
0.96', 128X64 Pixels |
| 2G/3G/4G Network Status |
| Power Status |
| Connection Status |
| WiFi Status |
| New SMS Status |
| Button |
Power |
Power Switch |
| WPS |
WPS Key |
| Reset |
Reset Key |
| Memory |
ROM |
4Gbits |
| RAM |
2Gbits |
| WebUI |
System |
Connection Status |
| Statistics |
| Samba (optional) |
| Device Management |
| Power Mangement |
| Andoid/iOS App Management |
Mobile
Service |
SMS Manager |
| Automatic APN matching according to USIM |
| Auto Data Connection |
| USSD Service |
| PIN/PUK Management |
| Network Mode Selection(2G/3G/LTE/Auto) |
| Router |
USB RNDIS Device |
| Up to 10 Wi-Fi users/devices |
| DHCP Server |
| IPv4/v6 |
| VPN Passthrough |
| Firewall |
| WPS |
| Security via WEP, WPA-PSK, WPA2-PSK |
| Wi-Fi Settings |
| Battery |
Type |
Li-ion Polymer Battery |
| Capacity |
3000mAh |
| Endurance |
5-6 hours (normal network situation) |
| |
| |
Buttons
Power Button, WPS Button,
Reset Button
|
|
Antenna
Internal Antenna, Support 2x External
Antenna ports.
Main x1,
Auxiliary x1,
WIFIx2；
LEDs
Power Indication LED,WAN Signal Strength, WiFi/WPS Indication LED, WAN/LAN Status LED,Internet Status LED
Frequencies
(1) TC Version :
LTE FDD:B1/B3/5/B8/28
TD-LTE:B38/39/40/41
WCDMA:B1/8
TDSCDMA:B34/39
CDMA&EVDO BC0
GSM:850/900/1800/1900
(2):European Version
LTE FDD:B1/B3/B5/B7/B8/B20
TD-LTE:40
WCDMA:B1/5/8
GSM:850/900/1800/1900
Note: LTE B7 and B38/41 is imcompatible,if you want B7 you cannot have B38/41
(3) USA & North American Version
LTE FDD:B2/B4/B5/12/B13/B17 /25/26
LTE TDD:B41
WCDMA:B2/B4/B5
EVDO:BC0/BC1
GSM:850/1900
(4)Australia & South American Version
LTE FDD:B1/B3/B5/B7/B8/B28
TD-LTE:40
WCDMA:B1/5/8
GSM:850/900/1800/1900
Data Features
FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL)
TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL)
DC-HSPA+: Max 42Mbps(DL)/5.76Mbps(UL)
WCDMA: Max 384kbps(DL)/384kbps(UL)
EDGE: Max 236.8kbps(DL)/236.8kbps(UL)
GPRS: Max 85.6kbps(DL)/85.6kbps(UL)
EVDO RevA: Max 3.1Mbps(DL)/1.8Mbps(UL)
CDMA1x: Max 153.6kbps(DL)/153.6kbps(UL)
Protocols
VPN Related Protocols: PP2P/L2TP/IPSec
WiFi Authentications
OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
Encryption: TKIP, AES, TKIP/AES;
Safety
URL Filter；
WiFi Black/White list
|
|
Firewall Enable/Disable;
Mac Address/IP Address Filter；
Port Forwarding；
Basic Functions
CS Domain
IPv6/IPv4 Dual Stacks
VPN Pass Through
|
|
Wireless & WiFi Bridge & Ethernet Modes
Router
DHCP Server
Adaptor
Adaptor Voltage: AC 100V~240V
Power Supply: DC 12V /1A
|
|
NAT
| |
|
|
|
|
|
| |
|
Power Consumption
Power Consumption<12W
|
|
| |
|
| |
| |
|
Environment
Working Temperature: -10°C to 65°C
Relative Humidity: 5% to 95%
|
|
| |

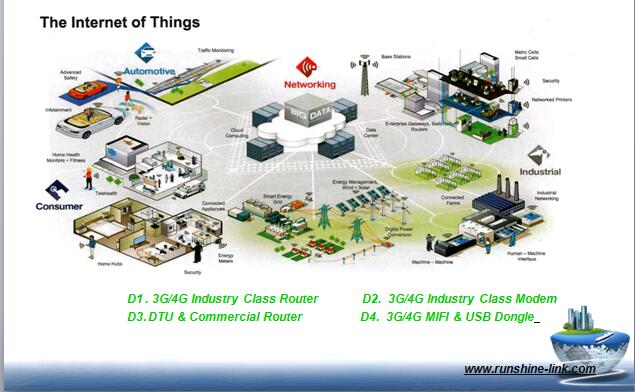

IOT & MST application system diagrammatic sketch :
