Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate

China Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate supplier
Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate supplier Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate supplier Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate supplier Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate supplier

Large Image :  Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate

Product Details:

Place of Origin: China
Brand Name: Runshine
Certification: Rosh/CE
Model Number: RSRT-4GC6-D

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: each device with a color box
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs/day
Contact Now
Detailed Product Description
Wifi Frequency: 2.4/5.8GHZ Dual Band Chipset: Qualcomm
Speed Rate: 150mbps Remote Control: TR-069

4G/3G Indoor Cat4/6 CPE router ,2.4/5.8GHZ dual band wifi



Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate








RSRT-4GC6-D CPE Introduction

Runshine RSRT-4GC6-D is a high-performance 4G Broadband CPE, which support the maximum
DL/UL speed of 150/50Mbps and driver free.

Rely on the 2*2 MIMO technology, RSRT-4GC6-D provides high quality telecommunication and
optimized WiFi data transmission. Diversity WiFi standards and encryption modes ensure
the product security and stability.

RSRT-4GC6-D can be widely used in commerce or household, since the multiple working modes
(Wireless/Bridge/Cable mode), abundant network protocols and reliable connectivity
(VPN pass through and firewall protection features)



RSRT-4GC6-D CPE Applications

Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate
Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate

Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate

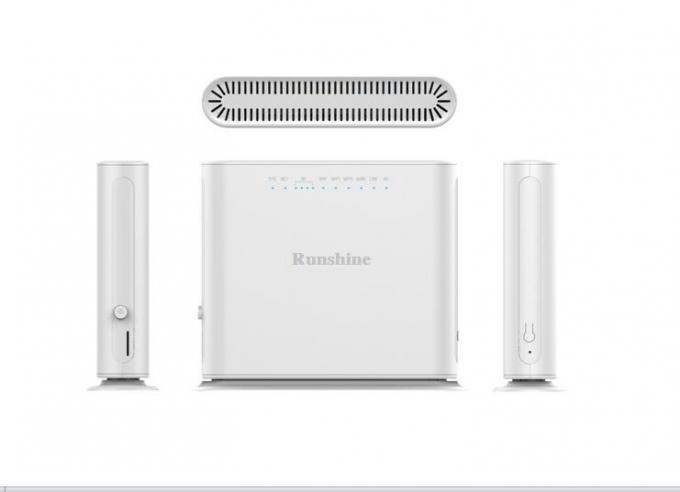

Size & Weight
Size: 176*153*44mm;Weight: 315g
Giftbox size : 34.5*20*5cm , Weight (Include CPE And Acessories ): 693g
Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate


Chipsets Information

1) Baseband Chipset: Qualcomm MDM9607.

2) WiFi Solutions:
Qualcomm QCA6174: WiFi 2*2, 2.4+5.8GHz, support 802.11 a/b/g/n/ac,


3) Slic Chipset: Silicon SI32185
Flash +Memory : 512 MB +256 MB DDR2 , or 4Gb+2 Gb DDR2
External Interfaces
1x Power DC Port:DC12V/1A;
1x 10Mbps/100Mbps/1000Mbps Adaptive WAN/LAN Port;
3x 10Mbps/100Mbps/1000Mbps Adaptive LAN Port
1x 2FF Standard SIM card slot






Buttons
Power Button, WPS Button,
Reset Button





Antenna
Internal Antenna, Support 2x External
Antenna ports.
Main x1,
Auxiliary x1,
WIFIx2;
LEDs
Power Indication LED,WAN Signal Strength, WiFi/WPS Indication LED, WAN/LAN Status LED,Internet Status LED
Frequencies


(1) TC Version :
LTE FDD:B1/B3/5/B8/28
TD-LTE:B38/39/40/41
WCDMA:B1/8
TDSCDMA:B34/39
CDMA&EVDO BC0
GSM:850/900/1800/1900


(2):European Version
LTE FDD:B1/B3/B5/B7/B8/B20
TD-LTE:40
WCDMA:B1/5/8
GSM:850/900/1800/1900
Note: LTE B7 and B38/41 is imcompatible,if you want B7 you cannot have B38/41

(3) USA & North American Version
LTE FDD:B2/B4/B5/12/B13/B17 /25/26
LTE TDD:B41
WCDMA:B2/B4/B5
EVDO:BC0/BC1
GSM:850/1900

(4)Australia & South American Version
LTE FDD:B1/B3/B5/B7/B8/B28
TD-LTE:40
WCDMA:B1/5/8
GSM:850/900/1800/1900

Data Features
FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL)
TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL)
DC-HSPA+: Max 42Mbps(DL)/5.76Mbps(UL)
WCDMA: Max 384kbps(DL)/384kbps(UL)
EDGE: Max 236.8kbps(DL)/236.8kbps(UL)
GPRS: Max 85.6kbps(DL)/85.6kbps(UL)
EVDO RevA: Max 3.1Mbps(DL)/1.8Mbps(UL)
CDMA1x: Max 153.6kbps(DL)/153.6kbps(UL)
Protocols
VPN Related Protocols: PP2P/L2TP/IPSec

WiFi Authentications
OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
Encryption: TKIP, AES, TKIP/AES;

Safety


URL Filter;
WiFi Black/White list


Firewall Enable/Disable;

Mac Address/IP Address Filter;
Port Forwarding;

Basic Functions


CS Domain
IPv6/IPv4 Dual Stacks
VPN Pass Through


Wireless & WiFi Bridge & Ethernet Modes

Router
DHCP Server


Adaptor
Adaptor Voltage: AC 100V~240V
Power Supply: DC 12V /1A


NAT




Power Consumption
Power Consumption<12W




System Tool
TR069;




Environment
Working Temperature: -10°C to 65°C
Relative Humidity: 5% to 95%

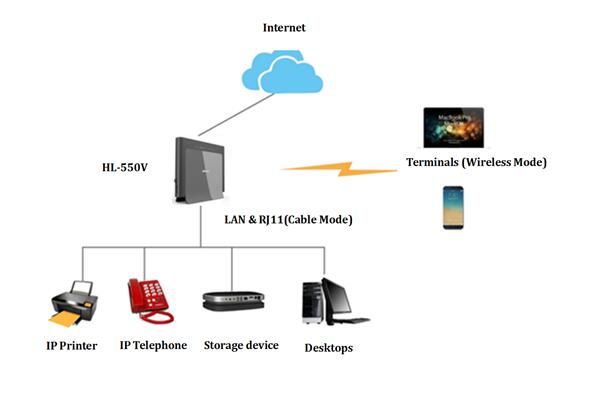

IOT & MST application system diagrammatic sketch :

Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate

What other IOT&M2M products we can provide ?

Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate

Office View

Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate

Testing system and equipment we have

Indoor Cat4/6 CPE Router Dual Band Wifi Frequency 150mbps High Speed Rate



More 4G router/CPE/MIFI is avalible ,price and MOQ is negotiable.
All 4G router/CPE/MIFI can be custmoized , for more information please kindly touch me directly!
